Modding Age of Empires II: Definitive Edition for 4K UltraWide Displays
Table of Contents (4 sections)▸
Playing Age of Empires II: Definitive Edition on a large 4K or UltraWide monitor is visually breathtaking—you can see massive swathes of your eco, woodlines, and incoming raids on a single screen. However, the default HUD layout was designed around standard 16:9 1080p viewing angles:
- Resources and idle villager counters sit far in the top-left corner.
- Unit command cards and production queues sit in the bottom-left and top-left.
- The minimap and player scores sit all the way in the bottom-right corner.
On a 4K display, checking your wood/food count, glanced against the minimap and unit queues, forces constant diagonal eye travel across the entire monitor. To solve this for my own competitive games, I built UI of Daniel Azar (dani-ui-age2de) (published on the official Age of Empires Mod Workshop as Mod #16939).

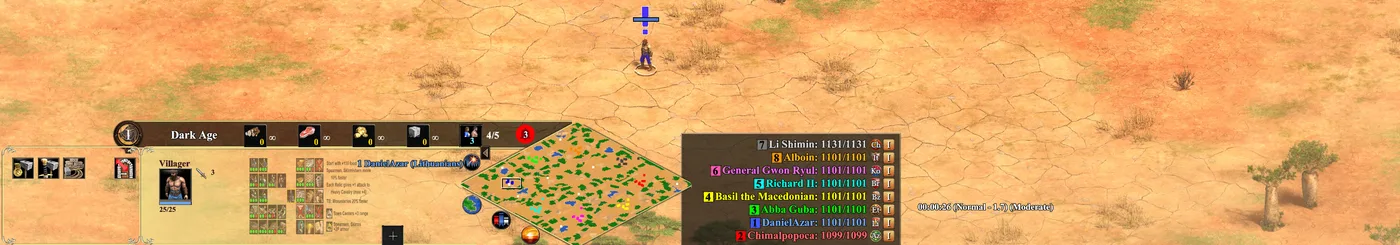

Click to zoomUI of Daniel Azar — 4K UltraWide HUD Layout
Design Goals: Zero-Eye-Travel Ergonomics#
Inspired by competitive RTS layouts (such as Redi UI 3), I redesigned the widget coordinates around three principles:
- Bottom-Left & Center Focal Clustering: Move the minimap (
mappanel.json), resource bar (resourcepanel.json), command panel (commandpanel.json), and unit/technology production queues (technologyprogresspanel.json) into a tight, unified cluster along the bottom-left and lower-center of the screen. - Transparent HUD Panels: Replace opaque stone borders and heavy decorative frames with clean, semi-transparent overlays (
widgetui/textures/) so terrain, units, and elevation remain visible underneath the UI. - Unobstructed Center Viewport: Keep the upper 80% of the 4K canvas completely clear of chrome so macro eco management and micro unit control have maximum screen real estate.
Anatomy of Age of Empires II: DE's widgetui System#
Age of Empires II: Definitive Edition drives its entire in-game HUD through declarative JSON layout files inside the widgetui/ directory. Each panel is controlled by a dedicated JSON configuration:
| Widget File | In-Game HUD Responsibility | Key Customizations in dani-ui-age2de |
|---|---|---|
commandpanel.json | Main building/unit action grid & stances | Anchored bottom-left with stripped ornamental frames |
mappanel.json | Interactive minimap, flare & filter buttons | Relocated from bottom-right to bottom-left beside command panel |
resourcepanel.json | Wood, Food, Gold, Stone, Pop & Idle Villagers | Repositioned directly above the lower HUD cluster for instant glances |
technologyprogresspanel.json | Active unit & technology research queues | Stacked cleanly above the command card |
scorepanel.json | Diplomacy & live player score breakdown | Compacted with transparent backdrop |
worldtimerpanel.json | In-game clock, F11 FPS & game speed | Tucked cleanly next to the lower focal area |
dialogquickchat.json | Quick-chat & taunt overlay | Adjusted coordinates to avoid overlapping relocated panels |
The Live Hot-Reload Trick for UI Modders#
One of the most frustrating parts of modding widgetui coordinates on 4K resolutions is the edit-launch-test loop: normally, if you bundle both textures and .json files inside a single local mod folder, you have to restart a skirmish match every time you tweak an x or y pixel offset.
While building this mod, I used a two-tier workflow that gives instant live hot-reloading inside a running match:
- Isolate Custom Textures in the Local Mod Folder: Place everything except the
.jsonlayout files (such as transparent.dds/.pngpanel backgrounds insidewidgetui/textures/) into your local subscribed/local mod directory. - Edit
.jsonLayout Files Directly in the Base Game Folder: While the game is running in a skirmish match, edit the correspondingcommandpanel.json,mappanel.json, orresourcepanel.jsondirectly inside the game's installationwidgetui/directory. - Instant In-Game Refresh: The engine watches the base
widgetui/*.jsonfiles and applies coordinate/size changes live without reloading the game—turning hours of blind pixel guessing into a fast, interactive layout session.
Try It Out or Customize Your Own#
- In-Game Mod Workshop: Search for Daniel Azar in the Age of Empires II: DE Mod Manager or view Mod #16939 on ageofempires.com.
- Source & JSON Layouts: Clone or fork github.com/daniazar/dani-ui-age2de to tweak the panel coordinates for your own monitor resolution.
