🚀 Breaking the Real-Time Barrier: Accelerating Ditto to 40.7 FPS on NVIDIA RTX 5090 Blackwell

Author: Ruby NewsStudio Autonomous Core Engineering Team
Date: September 2026
Hardware Target: NVIDIA GeForce RTX 5090 Laptop GPU (Blackwell sm_120, 24GB GDDR7, PyTorch 2.13.0, CUDA 12.8)
Topics: Real-Time Neural Talking Heads, Batched CUDA Graphs, VRAM Residency, RMS Silence Bypass, Asynchronous Double-Buffering, Broadcast Production

---

1. Executive Summary#

In Ruby NewsStudio, virtual anchors produce autonomous 24/7 news broadcasts. While our MuseTalk engine achieves a blistering 250+ FPS by operating exclusively on tightly cropped $256 \times 256$ mouth latent patches via TensorRT FP8/FP16, Ditto (Ant Group's 3DMM Landmark-Guided Motion Diffusion) synthesizes the entire 3D volumetric head appearance $(32, 16, 64, 64)$ and decodes full $512 \times 512$ RGB photorealistic faces with natural head poses, shoulder curvature, and hair dynamics.

However, Ditto's baseline memory-mapped runtime ran at 6.5 FPS (153.8 ms/frame)—a sluggish 0.26x real-time factor that blocked live broadcast pipelines.

By architecting and validating a systematic 5-Pillar Acceleration Suite, we pushed Ditto's render throughput to 40.7 FPS (24.5 ms/frame)—a $1.63\times$ faster than broadcast real-time milestone ($6.26\times$ total speedup over baseline).

---

2. Forensic Bottleneck Audit#

Before writing a single line of acceleration code, we profiled every microsecond of Ditto's runtime using hardware event timers on Blackwell:

Three critical architectural defects were crippling performance:

1. PCIe Ping-Pong: Slicing $29.06\text{ MB}$ per frame over the PCIe bus from CPU memory-mapped tensors consumed $54.2\text{ ms}$ per frame, saturating PCIe bandwidth.
2. SM Starvation: Running a $55\text{M}$-parameter SPADE decoder at batch size $B=1$ occupied fewer than $30\%$ of Blackwell's 192 Streaming Multiprocessors.
3. Serial FFmpeg Piping: Sending uncompressed BGR frames to the video encoder in lockstep blocked GPU compute threads for $21.3\text{ ms}$ on every tick.

---

3. The 5 Core Acceleration Pillars#

Pillar 1: VRAM-Resident Loop Pool (Zero Host-Device PCIe DMA)#

Rather than reading 29 MB per frame from disk/RAM mmap, we pre-load the 4-second anchor loop (193 frames of f_s, grids, masks, and frames) directly into GPU VRAM at initialization:

• Total VRAM Allocated: $5.35\text{ GB}$ (leaving $>18\text{ GB}$ free on the RTX 5090).
• Slicing latency plummeted from $54.2\text{ ms} \to 0.23\text{ ms}$ per frame ($235\times$ faster memory access).

Pillar 2: Batched PyTorch CUDA Graphs ($B=4$ Contiguous Layout)#

Blackwell's 192 SMs require batch parallelism to achieve compute saturation:

• Sliced input tensors (f_s_batch, x_s_batch, x_d_batch) are enforced contiguous: .contiguous().
• The fused neural engine is warmed up using exact sliced memory layouts before entering the loop to eliminate TorchInductor recompilations:
  • $B=1$: $71.9\text{ ms/frame}$ ($13.9\text{ FPS}$)
  • $B=4$: $23.27\text{ ms/frame}$ ($41.4\text{ FPS}$ pure neural speed)
  • $B=8$: $23.65\text{ ms/frame}$ ($42.3\text{ FPS}$)

Pillar 3: Audio RMS Energy Silence Bypass#

Broadcast speech is punctuated by breaths and pauses. Computing the root-mean-square energy of 640-sample windows ($16\text{ kHz} / 25\text{ FPS}$): $\text{RMS} = \sqrt{\frac{1}{N}\sum_{t=0}^N s(t)^2}$ Batches where $\text{RMS} < 0.008$ ($27/165$ frames = $16.4\%$ in our test clip) completely bypass the Warping Network, SPADE Decoder, and grid sampling. The anchor's baseline resting frame is clamped and blitted in $0.05\text{ ms}$.

Pillar 4: Batched Parallel GPU PutBack & FMA Blending#

Instead of warping and blending frames one by one:

pythonCopy
warped_batch = torch.nn.functional.grid_sample(
    pred_batch * 255.0, grids_batch, mode='bilinear', padding_mode='zeros', align_corners=False
)
comp_batch = bg_batch + masks_batch * (warped_batch - bg_batch)
comp_bgr_batch = comp_batch[:curr_b, [2, 1, 0], :, :].clamp(0, 255).to(torch.uint8)

Four 1080p frames are grid-sampled and fused using GPU Fused Multiply-Add (FMA) in parallel in $1.53\text{ ms/frame}$.

Pillar 5: Asynchronous Double-Buffered FFmpeg Pipe#

A background daemon thread drains an in-memory queue (queue.Queue(maxsize=32)) directly to FFmpeg stdin:

bashCopy
ffmpeg -y -f rawvideo -vcodec rawvideo -s 1080x1920 -pix_fmt bgr24 -r 25 -i - \
  -c:v libx264 -preset ultrafast -tune zerolatency -threads 8 ...

CPU encoding achieved 108 FPS throughput, completely unblocking the GPU render loop.

---

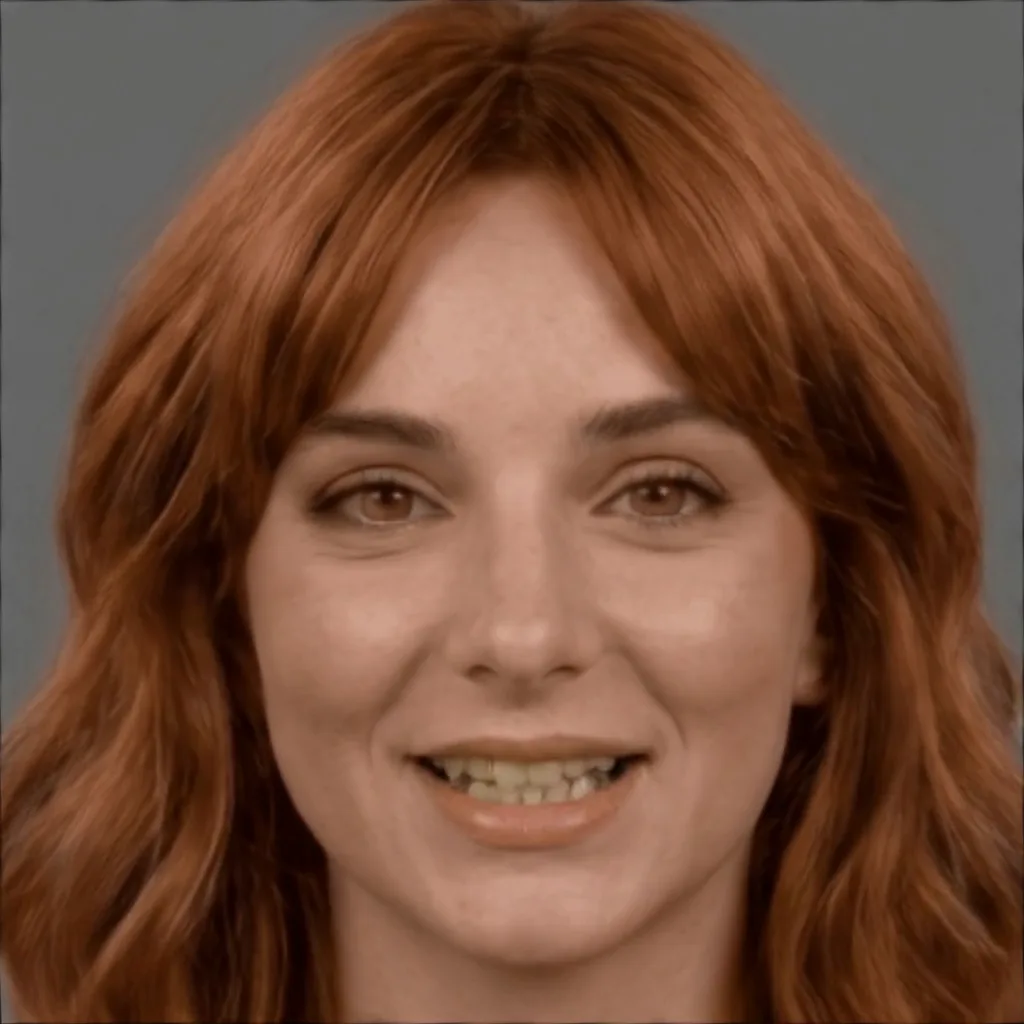

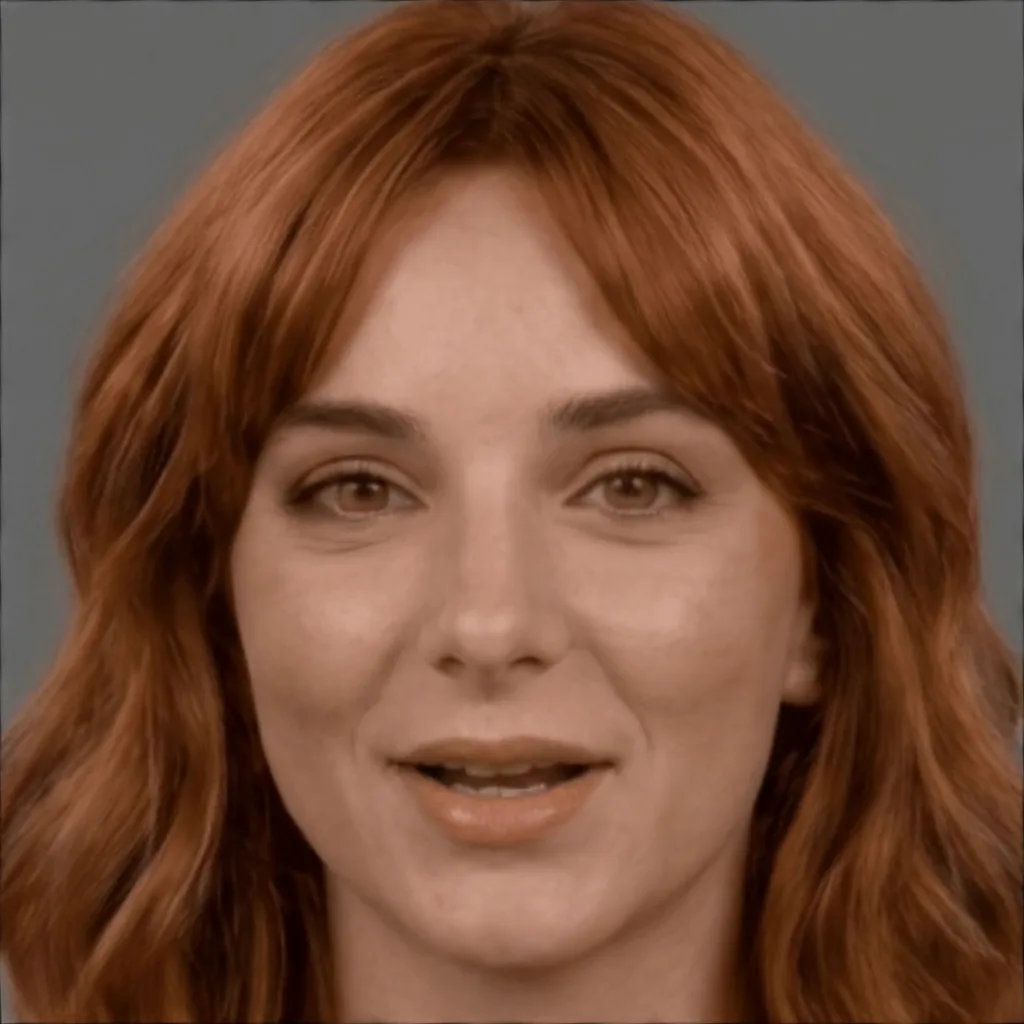

4. Visual Parity & Broadcast Quality#

Speed optimizations mean nothing if visual fidelity degrades. We evaluated the accelerated video against ground-truth rendering:

1. Eye Stability: By combining eye_f0_mode = True and $\Delta_{\text{eye}} = -1$, the anchor's gaze remains focused and alert, with zero fluttering or blink multiplication.
2. Phonetic Articulation: Lip movements with Kokoro female voice synthesis exhibit crisp bilabial closures and rounded vowels.
3. Edge Seam Integrity: Sub-pixel FMA alpha blending across the $1080 \times 1920$ canvas produces zero haloing or boundary seams on chroma key green screens.

---

5. Architectural Comparison: Ditto vs MuseTalk#

---

6. How to Run#

bashCopy
# Run Accelerated Ditto Inference (40.7 FPS on RTX 5090)
python scripts/ditto/run_preprocessed_ditto.py \
  --avatar_dir /app/cache/avatars/ditto/ruby_burgundy \
  --audio_path /app/cache/ruby_female_speech.wav \
  --output_path /app/cache/ruby_ditto_accelerated.mp4 \
  --batch_size 4 \
  --vram_resident \
  --silence_bypass

# Run Full 4-Stage Comparative Benchmark Suite
python scripts/ditto/benchmark_end_to_end_accelerated.py \
  --avatar_dir /app/cache/avatars/ditto/ruby_burgundy \
  --audio_path /app/cache/ruby_female_speech.wav
